CD-RB10 replacement (homebrew)

How to build a homebrew cable for your Pioneer Car Radio.
(only for those with additional blue ip-bus connector)
it can replace the CD-RB10 (very expensive) cable.

You need:

A female RCA Cable (you will need just a half)
Soldering iron
A precision IC socket. (DIL 8 is enough)
A few cm heat shrink tube.

If you don't have to buy the soldering iron, it will be less than EUR 3 to build the cable.

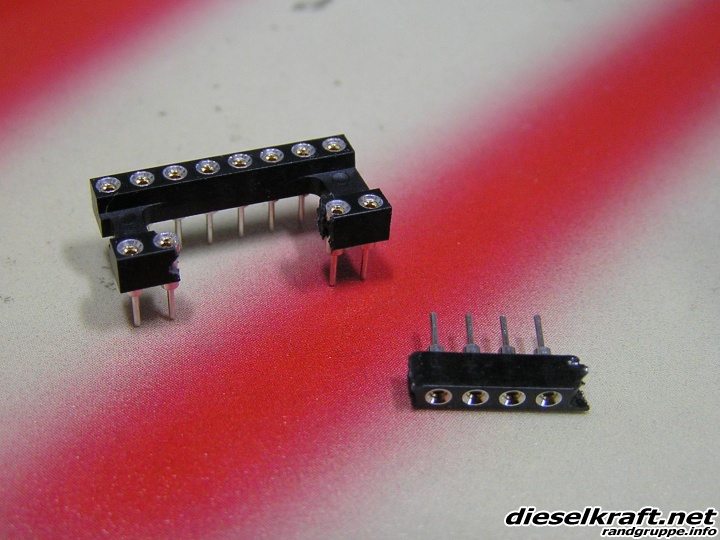

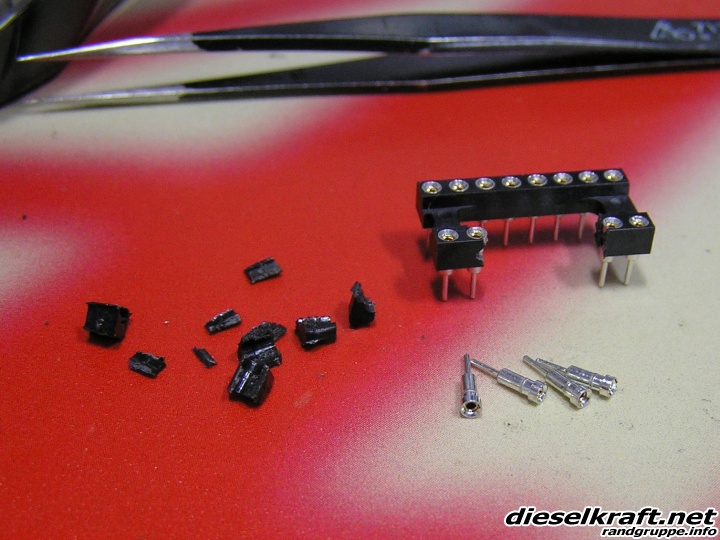

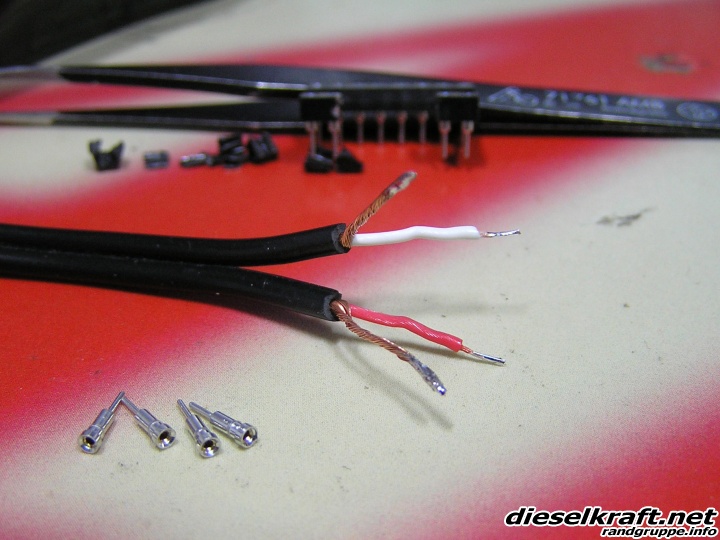

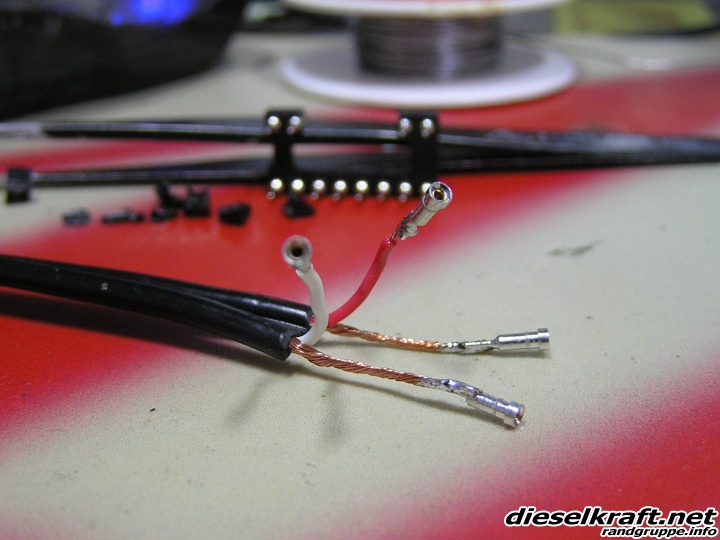

Just cut out the "pins" of the socket, solder them to the end of the RCA wire, isolate it with the heat shrink tube and youre done.
please excuse my bad english ;)

	1. BUSP1 2. Not connected 3. GND 4. Not connected 5. BUSM1 6. Not connected	7. AUDIO LEFT 8. ASENBUS 9. AUDIO RIGHT 10. GND 11. GND
as seen at the back of the radio

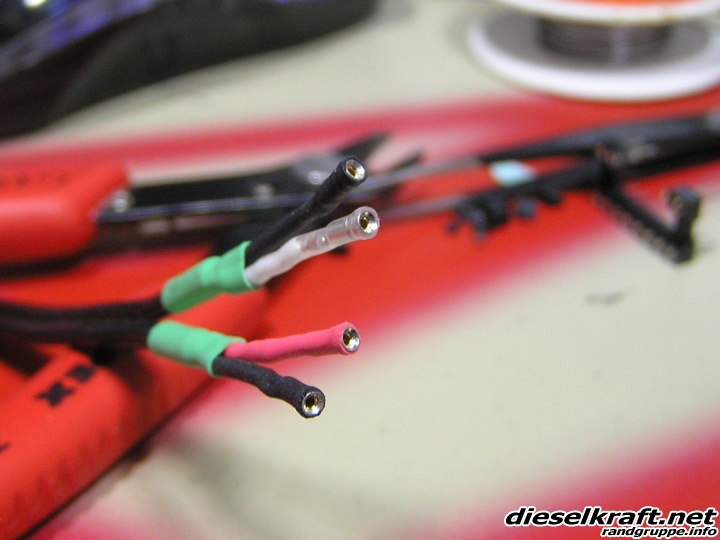

Here you can see how i build mine. (click pictures)

zugegeben sehr einfach, wenn man so wie ich z.b. einen äteren diesel fährt muss man noch mit klebeband oder so nachhelfen, dass die pins nicht andauernd rausfallen.
